OVERVIEW:

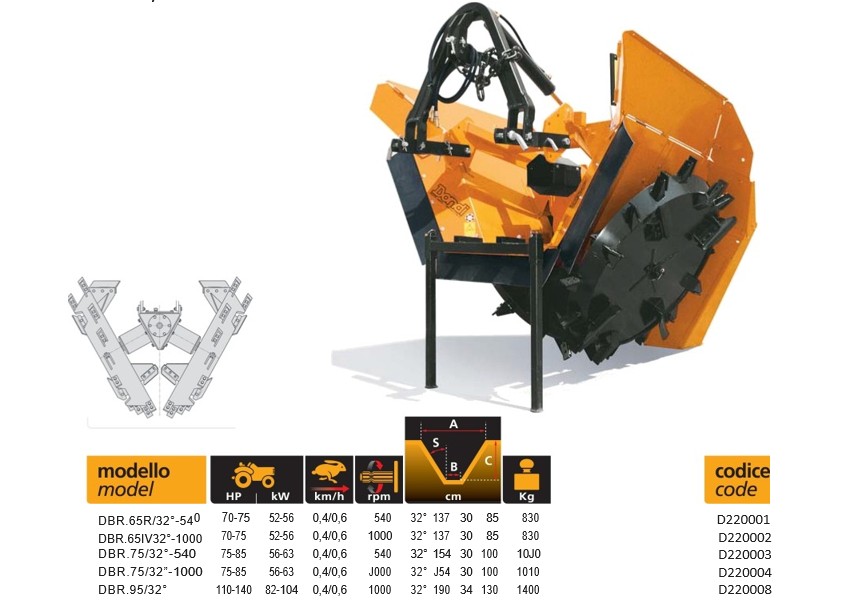

This fully imported Italian DONDI double-wheel rotary ditcher offers the highest level of technology and performance for digging and main-taining drainage and irrigation ditches.

They can be used on any wheeled tractor with creep speeds of 0.4 / 0.6 for digging new ditches, while a higher advancement speed of up to 1.2 Km/h can be used for simple maintenance work. The standard digging angle is 32˚, and digging angles of 18˚, 20˚, 23˚, 42˚ are available on re-quest in order to adapt to different types of soil and various needs.

In order to use the ditchers, the tractor must be ballasted in the front
Work depth is regulated via the hydraulic hoist of the tractor in a con-trolled position.

Ditch is dug in one or more passages, depending on the type of soil, tractor power and advancement speed.

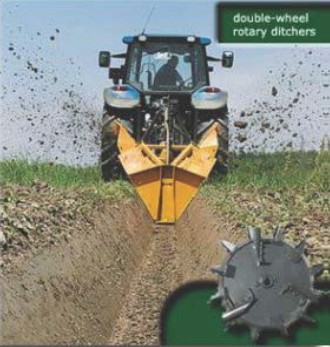

The excavated soil is distributed evenly on both sides. On request, supplementary rubber covers are  also available to protect crops or form two lateral embankments.

OPTIONAL FEATURES:
*  Transport wheel
*  Three-point hydraulic hitch
*  Hydraulic regulation of the side covers
*  Cardan shaft with safety clutch.
