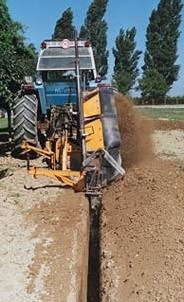

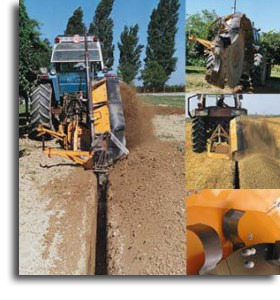

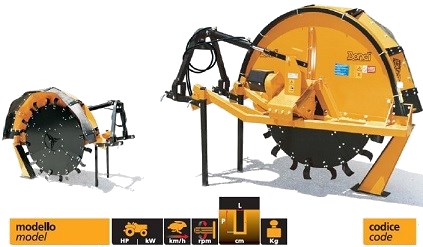

DRENAG VERTICAL TRENCH CUTTING DEVICE
DONDI DRENAG is effective on any type of rock-free soil to open drain-age ditches and lay drainage and irrigation pipes, electrical and tele-phone cables, and pipes for water mains with a maximum diameter of 150 mm.
DONDI DRENAG is used on the three-point hitch of any type of tractor with wheels with creep speeds of 0.35 / 0.65 Km/h and is driven by a power takeoff at 540 and 1000 rpm. The work depth is adjusted via hy-draulic hoist of the tractor and a hydraulic jack on the DRENAG performs the startup operation unti the desired depth is achieved.
The different cutting widths are obtained simply by inverting the position of the blades on the 8– and 14– cm rotor disk and with a kit of pads to
The excavated soil can be removed laterally or can be left near the ditch to fill it after the pipes have been laid.
On request, the DRENAG 75/100 and 100/120 can be outfitted with a
complete kit for de reeling pipes and/or cables while the ditching is under way.
DONDI DRENAG is delivered complete with a Cardan shaft, safety clutch and third-point hydraulic hitch in the 75/100 and 100/120 models. When working with hard and rocky soils, the machine can also be equipped with tools with tungsten bits.
OPTIONAL FEATURES:
Complete kit for pipe-laying device
Complete kit for 20 cm cutting section
Third-point hydraulic hitch for DRENAG 50
| Model | HP | kW | km/h | rpm | P cm | L cm | Kg | Code | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DRENAG 50-540 | 60-68 | 45-51 | 0,35/0,65 | 540 | 50 | 8-14 | 460 | D225001 | ||
| DRENAG 60-540 | 70-90 | 52-67 | 0,35/0,65 | 540 | 60 | 8-14 | 510 | D225005 | ||
| DRENAG 75/100-540 | 90-110 | 67-82 | 0,35/0,65 | 540 | 75 | 8-14-20 | 960 | D225002 | ||
| DRENAG 75/100-1000 | 90-110 | 67-82 | 0,35/0,65 | 1000 | 75 | 8-14-20 | 960 | D225003 | ||
| DRENAG 100/120-1000 | 140-170 | 104-127 | 0,35/0,65 | 1000 | 100 | 8-14-20 | 1800 | D225004 |

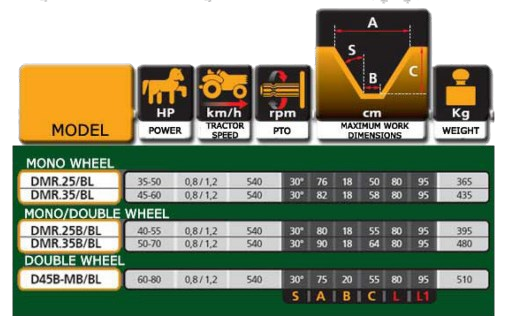

Bilateral Mono Wheel/Mono Double Wheel Ditcher
OVERVIEW:
Ditchers with all the same technical and ditching features as conventional central mono-wheel and mono/double-wheel ditchers.
The main distinguishing feature of these models is that they can dig in different positions.

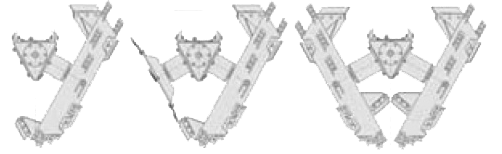

Through a simple manual or hydraulically commanded operation, the ditcher can move laterally to the right side for a shift of 95 cm from the center of the tractor, and to the left side for a shift of 80 cm.
ENQUIRIES & ORDERS:
Office+27 (0) 86 033 3110 Cell +27(0) 82 4687094 info@roadkingsa.co.za www.roadkingsa.co.za

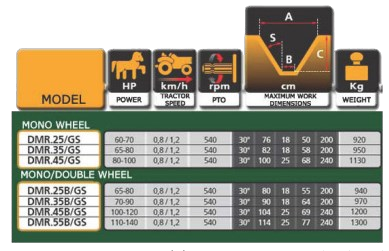

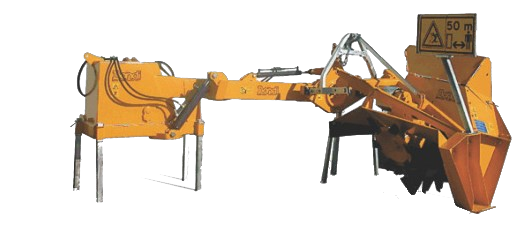

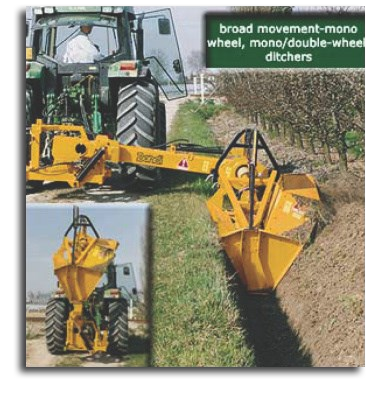

Broad Movement Mono Wheel & Mono Double Wheel
OVERVIEW:
This device enables the excavation and maintenance of ditches set laterally with respect to the tractor.
During the transport phase, the ditcher is positioned vertically.
The lateral device can also be supplied individually for mounting on any type of ditcher.
Motion is transmitted via cardan shafts.
There are two models available: one makes it possi-ble to work at a distance of 160 cm and the other at a distance of 240 cm from the center of the tractor to the center of the excavated ditch.
Full technical specification and options available on request.
Supplied & Distributed by

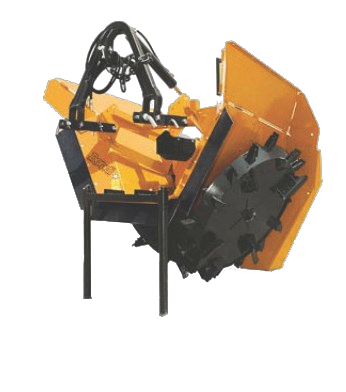

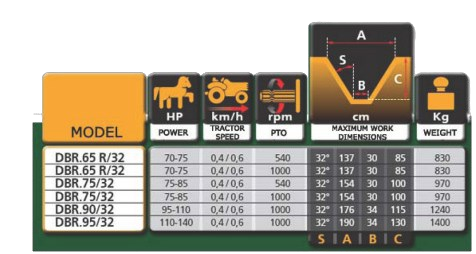

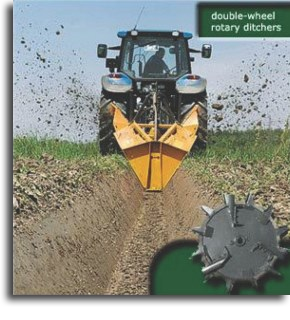

Double Wheel Rotary Ditcher
OVERVIEW:
This fully imported Italian DONDI double-wheel rotary ditchers offers the highest level of technology and performance for digging and main-taining drainage and irrigation ditches.
They can be used on any wheeled tractor with creep speeds of 0.4 / 0.6 for digging new ditches, while a higher advancement speed of up to 1.2 Km/h can be used for simple maintenance work. The standard digging angle is 32˚, and digging angles of 18˚, 20˚, 23˚, 42˚ are available on request in order to adapt to different types of soil and various needs.
In order to use the ditchers, the tractor must be ballasted in the front ditch is dug in one or more passages, depending on the type of soil, tractor power and advancement speed.
The excavated soil is distributed evenly on both sides. On request, sup-plementary rubber covers are also available
Work depth is regulated via the hydraulic hoist of the tractor in a con-trolled position.
OPTIONAL FEATURES:
Transport wheel Three-point hydraulic hitch Hydraulic regulation of the side covers Cardan shaft with safety clutch.
