Roadking Manufacturing · Trailers · Earthmoving
Tipping trailers built for rock, gravel and farm work
Six tipping trailers, from a 5-ton scowback for everyday farm work to an 18-ton tandem rock dumper with a 68° tip. Every one of them turns the tractor you already run into a haulage unit for gravel, rock, sand, stone, building material, veld rubbish and farm loads.
- Gravel & road material
- Blast rock
- Sand & stone
- Building material
- Veld rubbish
- Manure & chicken litter
- Grain & feed
- Timber
The proposition
Why a tractor tipper instead of a tipper truck
A tipper truck carries its own engine, gearbox, cab and licensing costs, and on most farms it stands idle for long stretches between loads. A Roadking tipping trailer puts the tractor you already own to work instead. There is no second engine to service, and the trailer goes wherever the tractor can pull it: into the quarry, across the lands and down farm roads.
The range splits into two families. The DB5 and DB6 are scowback tippers for mixed farm loads, from gravel and grain to manure and timber. The RD8, RD10, RD10 Tandem and RD18 are rock dumpers with Benox steel bins, heavy hydraulic tipping and braked axles, built for blast rock, gravel and construction work.
You choose the tyres to suit your ground, the colour to match your fleet and, on most models, the hitch, brakes and suspension. On-road registration and a full lights and reflector package are available on request.
Compare the range
Six trailers, listed by payload
Match the trailer to the load you carry and the tractor you pull it with. Payload and volume figures are as published on each model’s specification sheet.
Pick your size
Payload, and how much the bin holds
DB5Scowback · single axle
To confirm
DB6Scowback · single axle
3.8 m³
RD8Rock dumper · single axle
3.8 m³
RD10Rock dumper · single axle
6 m³
RD10 TandemRock dumper · tandem
7.65 m³8 m³ heaped
RD18Rock dumper · tandem
8.8 m³10 m³ heaped
| Model | Type | Payload | Volume | Tip angle | Tyres | Overall length |
|---|---|---|---|---|---|---|
| DB5 | Scowback, single axle | 5 t | to confirm | to confirm | 2 × 285/70 × 19.5 | 4 800 mm |
| DB6 | Scowback, single axle | 6 t | 3.8 m³ level | 54° | 2 × 285/70 × 19 | 5 700 mm |
| RD8 | Rock dumper, single axle | 8 t | 3.8 m³ | to confirm | 2 × 385/65 × 22.5 | 5 550 mm |
| RD10 | Rock dumper, single axle | 10 t | 6 m³ | to confirm | 2 × 425/65 × 22.5 or 4 × 315/80 × 22.5 | to confirm |
| RD10 Tandem | Rock dumper, tandem axle | 12 t | 7.65 m³ struck (8 m³ heaped) | 65° | 4 × 385/65 × 22.5 | 6 200 mm |
| RD18 | Rock dumper, tandem axle | 18 t | 8.8 m³ struck (10 m³ heaped) | 68° | 4 × 445/75 × 22.5 | 6 350 mm |
The trailers
Earthmoving trailers in detail
Trailer 1 of 6

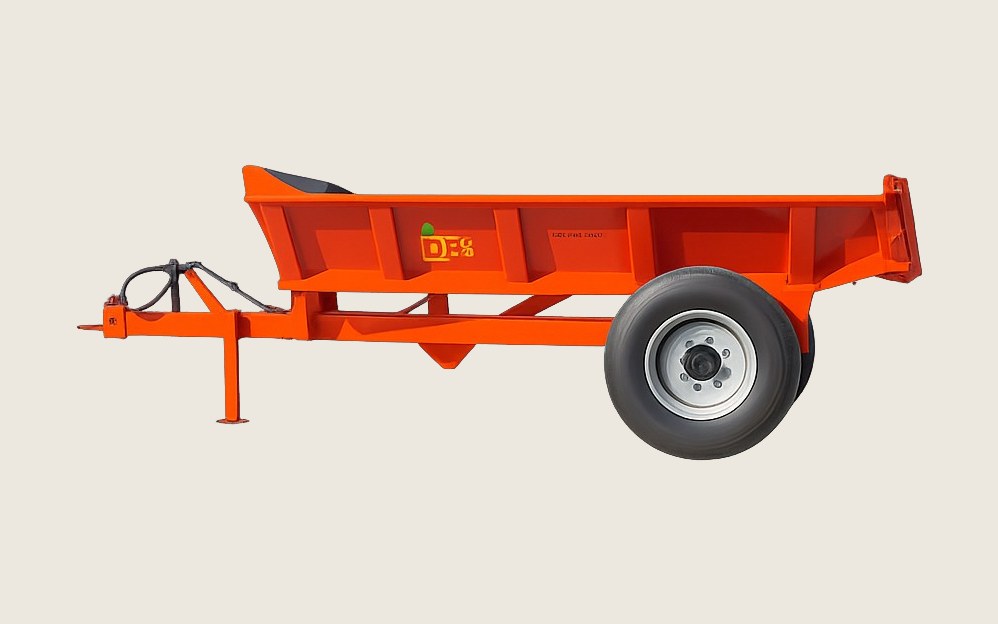

Roadking DB5
The budget all-rounder for on-farm work
The basic off-road, on-farm DB5 is a great choice for carting gravel, grain, grass, manure, chicken litter, veld rubbish, animal feed and almost any other load you can think of, at a budget price. A heavy-duty 6-ton solid beam axle is fitted as standard, and you can choose the tyres, colour and design modifications to match the job on hand.
Payload
5 t
Body length
3 200 mm
Overall length
4 800 mm
Width
1 800 mm
Deck height
1 050 mm
Sides
400 mm550 mm headboard
Axle
6 t solid beamunbraked
Tyres
285/70 × 19.5
Chassis
127 mm RSC chassis with a boxed drawbar.
Bin
3 mm S355J deck with 2 mm S355J dropsides.
Axle & brakes
Heavy-duty 6-ton unbraked solid beam axle. Hydraulically actuated drum brakes are optional.
Hitch
50 mm or 32 mm bugle eye.
Stand
Manually operated, mounted on the drawbar.
Optional accessories
- Lights and reflector package
- Hydraulic brakes
- Height adjustable hitch
- e-NaTIS registration
- Tailgate
Trailer 2 of 6

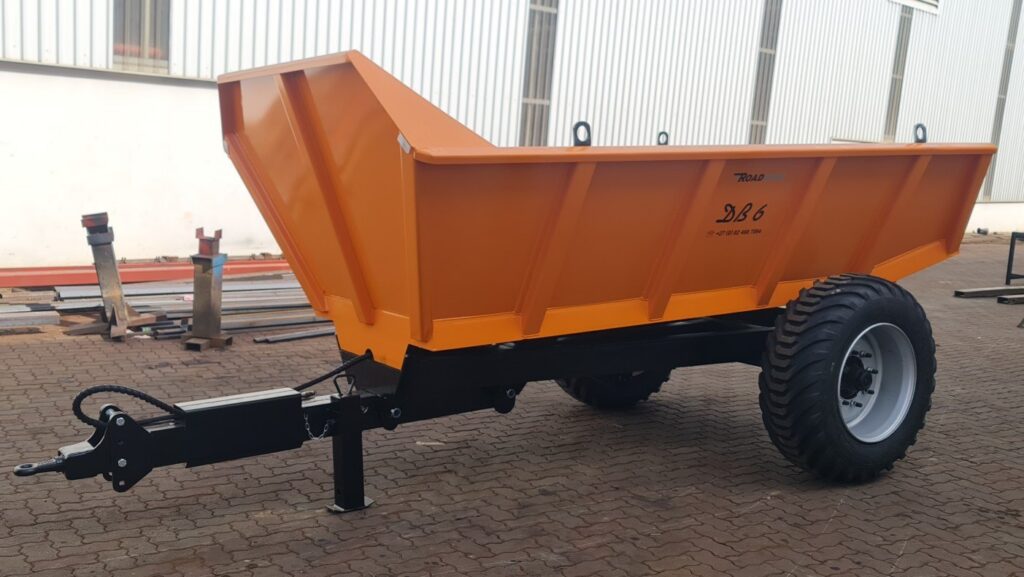

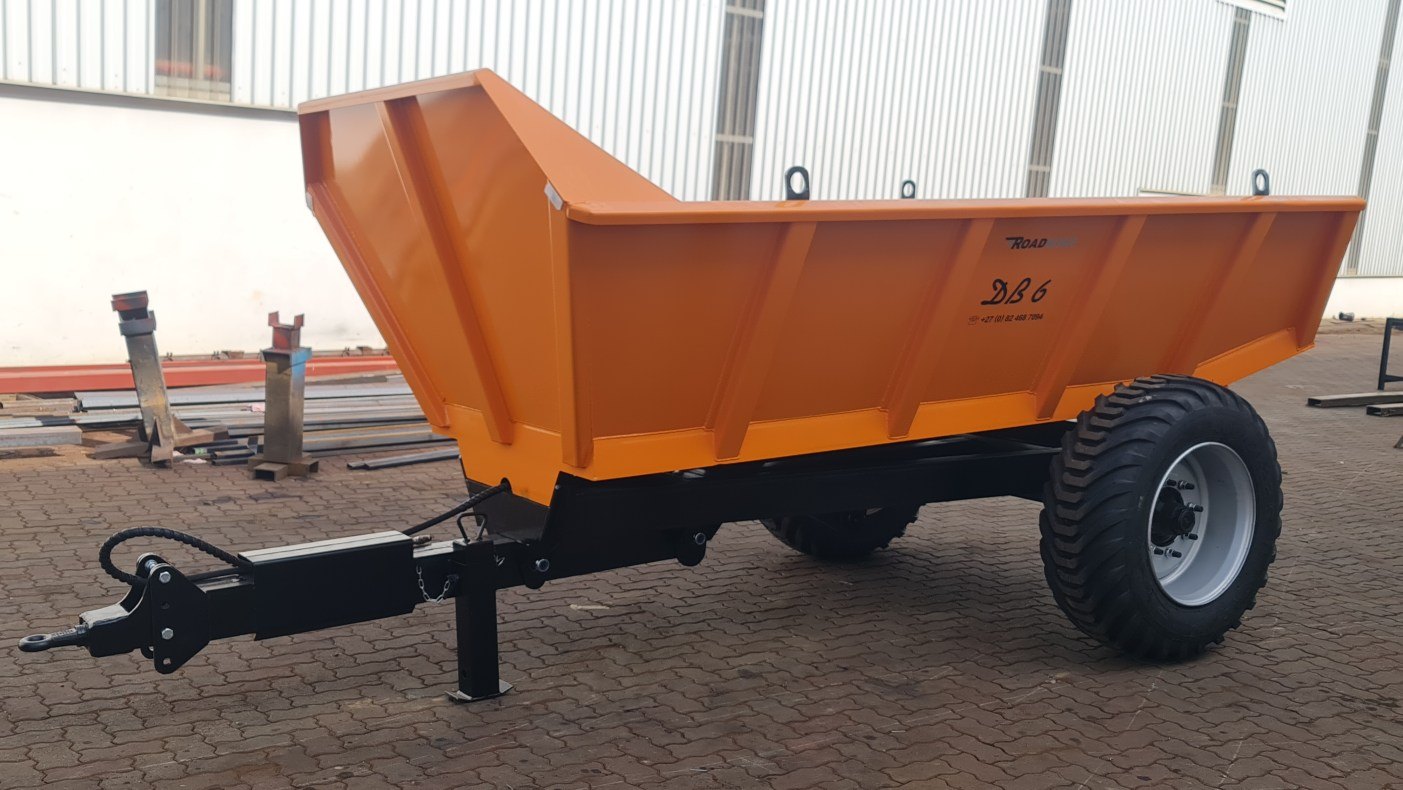

Roadking DB6
A bigger scowback with a hydraulic 54° tip
The DB6 steps up from the DB5 with a longer, deeper bin, a braked axle and wide land tyres. A single double-acting cylinder tips the bin to 54°, and the height adjustable hitch cradle lets you match the drawbar to the tractor. Stake pockets are available for carting timber.
Payload
6 t
Volume
3.8 m³bin filled level
Bin length
4 200 mm
Overall length
5 700 mm
Width
2 050 mm
Height
1 600 mm
Tip angle
54°
Tyres
2 × 285/70 × 19
Construction
Welded steel sections with 152 mm RSC beams and a 5 mm S355J deck.
Tipping
54° tip from a single double-acting DW 385 hydraulic cylinder.
Axle & brakes
80 mm solid beam axle with hydraulically braked 8-stud hubs, standard.
Hitch
Height adjustable cradle with a 50 mm bugle eye or 32 mm swivelling Din-eye ring.
Landing leg
100 mm square, drawbar mounted and manually operated.
Finish
Chemically cleaned, one coat Valspar anti-corrosion primer and two coats Valspar yellow. Tail lights and indicators fitted standard.
Optional accessories
- Customer specified tyres
- Top hung tailgate
- 6 mm Benox bin
- Stake pockets for timber
Trailer 3 of 6
Roadking RD8
A farmer's best friend, from blast rock to veld rubbish
This durable, heavy-duty rock body tipping trailer is an indispensable part of the South African farming way of life. Heavy-duty multistage hydraulic cylinders, all built in South Africa, tip a 6 mm Benox steel bin with strong bin stiffeners, and it carries payloads ranging from blast rock to gravel, sand, stone, veld rubbish and farm equipment. The square solid beam axle comes standard with hydraulically actuated brakes.
Payload
8 t
Volume
3.8 m³
Bin length
3 982 mm
Overall length
5 550 mm
Width
2 104 mm
Bin height
1 000 mm
Axle
10 t squaresolid beam
Tyres
2 × 385/65 × 22.5
Bin
6 mm Benox deck and sides with bin stiffeners.
Tipping
Twin multistage hydraulic cylinders.
Axle & brakes
Square solid beam axle with hydraulically actuated brakes.
Hitch
50 mm bugle eye, standard.
Stand
100 mm square.
Optional accessories
- Tailgate
- On-road lights and reflector package
Trailer 4 of 6

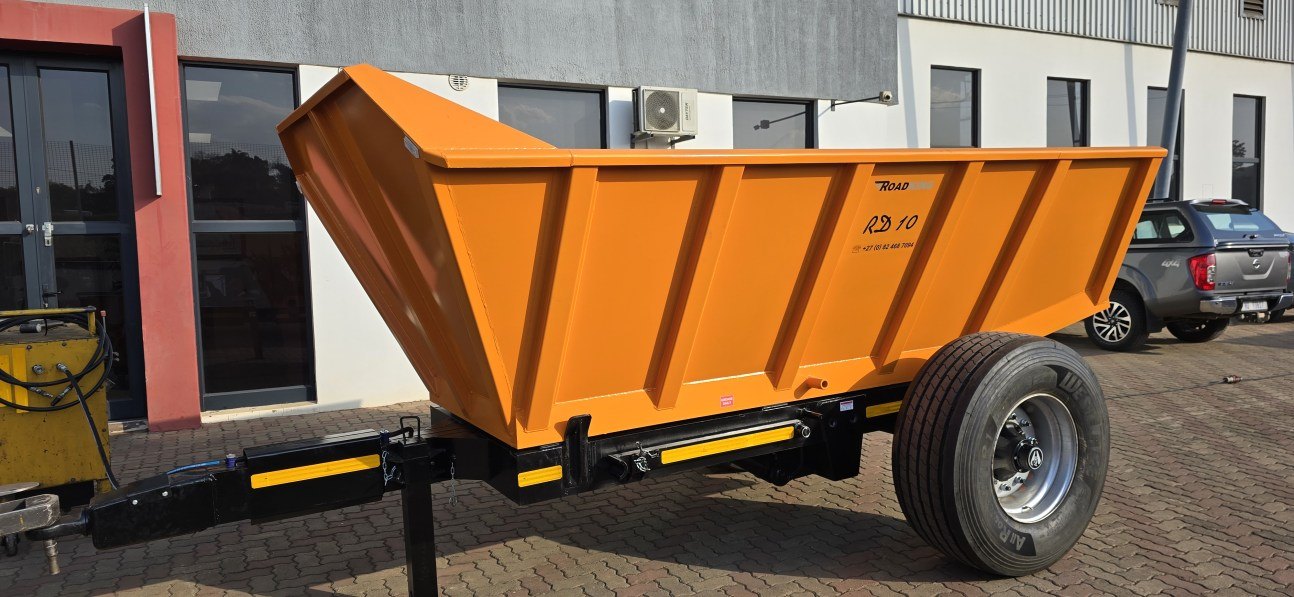

Roadking RD10
Heavy-duty dump body with a 14-ton axle
This durable, heavy-duty dump body tipping trailer is built for rock, gravel, sand, stone, veld rubbish, building material and almost anything else you need to move. Twin multistage cylinders power an all-steel Benox bin with strong stiffeners, on a 200 mm RSC chassis with doublers and a 14-ton ADR axle. With normal maintenance it has a potentially indefinite working life, and it is also available in a tandem axle version.
Payload
10 t
Volume
6 m³
Bin length
4 030 mm
Overall length
to confirm
Width
2 396 mm
Sides
1 000 mm
Axle
14 t ADRsolid beam
Tyres
2 × 425/65 × 22.5or 4 × 315/80 × 22.5 dual
Chassis
200 mm RSC with doublers, and a 200 mm boxed RSC drawbar.
Bin
6 mm Benox steel, with 8 mm optional.
Tipping
Twin multistage hydraulic cylinders.
Axle & brakes
14-ton ADR solid beam axle with hydraulically actuated brakes.
Hitch
52 mm cast bugle eye.
Stand
Mechanical, adjustable.
Optional accessories
- Top hung tailgate
- 8 mm Benox bin
- Dual wheel fitment, 4 × 315/80 × 22.5
Trailer 5 of 6

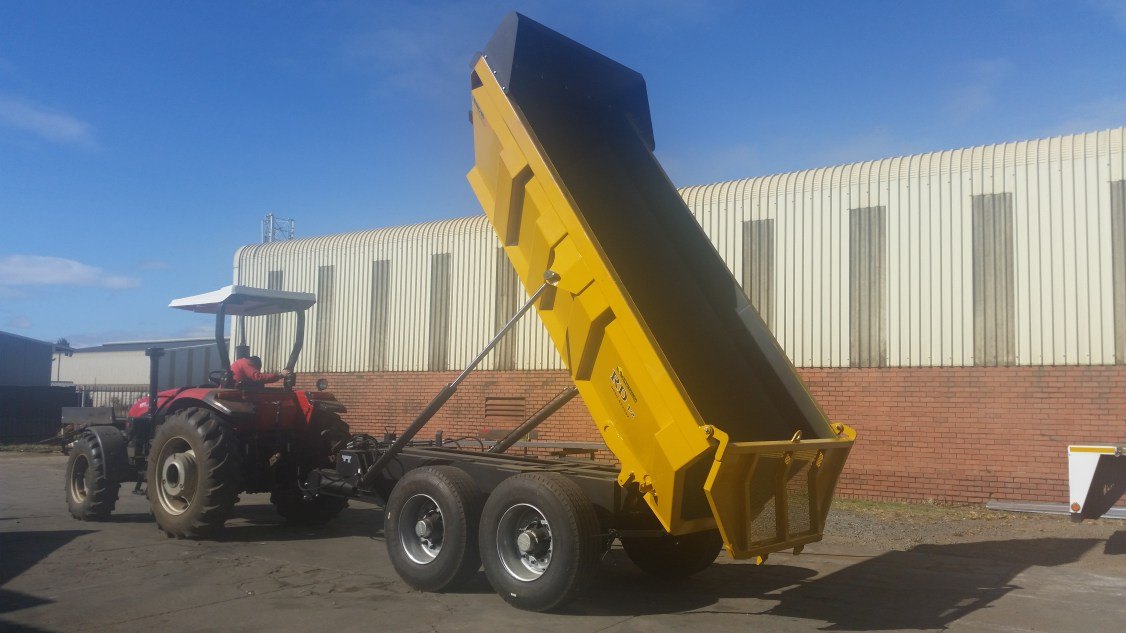

Roadking RD10 Tandem
Construction grade, with a 65° tip
A tough, durable and reliable construction-grade trailer with a 65° tip, built for carrying payloads of gravel, rock, sand or stone. Two double-acting cylinders lift a 6 mm Benox bin on tandem 15-ton axles, and you can choose between sprung suspension or an oil bath walking beam, and between hydraulic or pneumatic brakes. On-road registration and a full lights and reflector package are supplied on request.
Payload
12 t
Volume
7.65 m³8 m³ heaped
Tip angle
65°
Overall length
6 200 mm
Width
2 350 mm
Height
2 600 mm
Tare
4 500 kg
Tyres
4 × 385/65 × 22.5or to customer spec
Construction
All welded 260 mm steel sections and 6 mm Benox plate.
Tipping
2 × double-acting, all welded hydraulic cylinders. 65° tip angle.
Suspension
J2 sprung suspension with tandem 15-ton axles, or an optional oil bath double pinion walking beam.
Brakes
Hydraulically actuated, or optional pneumatic brakes.
Hitch
90 mm cup and ball, or 50 mm bugle eye. 100 mm square drawbar-mounted landing leg.
Finish
Chemically cleaned, Palinel anti-corrosion epoxy primer and two coats Palinel 2K yellow epoxy.
Optional accessories
- Oil bath walking beam suspension
- Pneumatic brakes
- On-road registration
- Lights and reflector package
Trailer 6 of 6

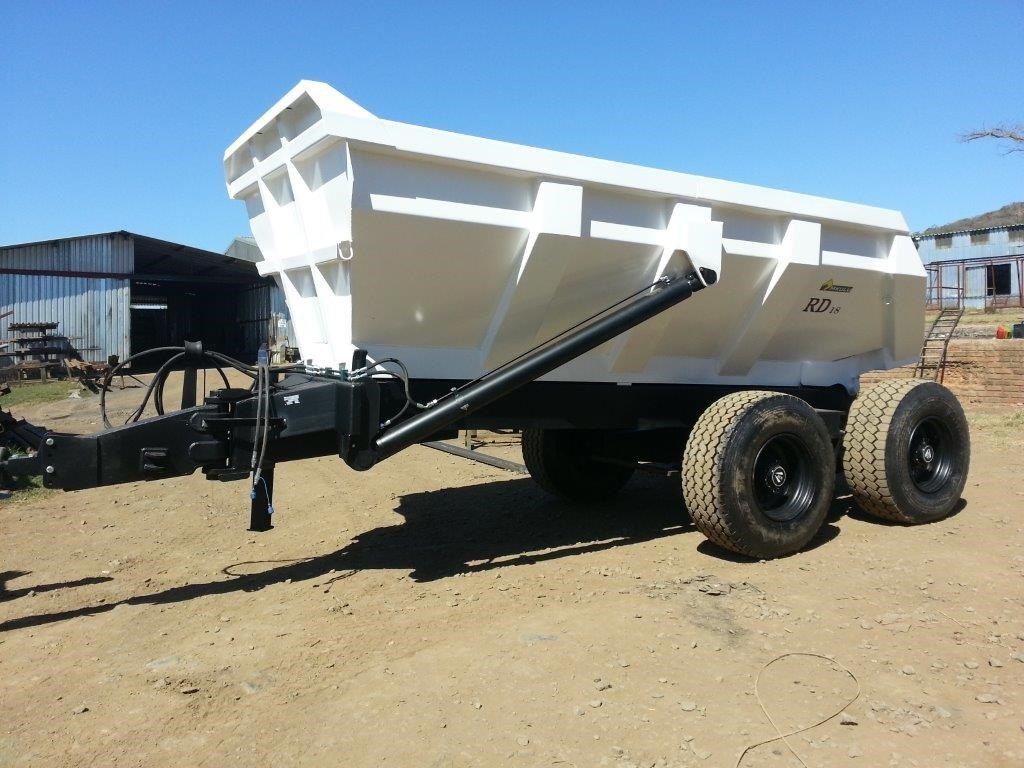

Roadking RD18
The biggest in the range, with a 68° tip
The RD18 is the largest trailer in the range, carrying 18 tons on four 445/75 × 22.5 tyres. Twin 120 mm double-acting cylinders tip the bin to 68°, the axles run on J2 sprung suspension with braked 10-stud hubs, and chevrons, reflectors, lights and indicators come fitted as standard.
Payload
18 t
Volume
8.8 m³10 m³ heaped
Tip angle
68°
Overall length
6 350 mm
Width
2 490 mm
Height
2 750 mm
Axles
127 mm round10-stud braked hubs
Tyres
4 × 445/75 × 22.5
Construction
All welded from rolled steel sections and plates. Bin in 6 mm S355J plate, with Benox optional.
Tipping
120 mm double-acting cylinders. 68° tip angle.
Suspension
J2 sprung suspension on 127 mm round axles.
Brakes
Hydraulic or pneumatic drum brakes on all wheels.
Hitch
90 mm ball hitch, with an optional quick turn drawbar hitch. Other hitch types on request.
Finish
Chemically cleaned, one coat Palinel 2K anti-corrosion primer and two coats Palinel 2K enamel. Chevrons, reflectors, lights and indicators fitted.
Optional accessories
- Benox bin
- Quick turn drawbar hitch
- Pneumatic brakes
- Other hitch types on request
Where they work
What a Roadking tipper carries
Road building & gravel
Carting gravel and road material for building and maintaining farm and estate roads.
Quarry & blast rock
Hauling blast rock and stone, where the rock dumpers’ Benox bins take the punishment.
Construction
Moving sand, stone and building material on site and between sites.
Farm clean-up
Clearing veld rubbish, rubble and cuttings after harvest or land clearing.
Manure, litter & feed
Carting manure, chicken litter, grain and animal feed around the farm.
Timber
Moving timber on the DB6 fitted with optional stake pockets.
Manufacturing
Built in Camperdown, distributed across Africa
Roadking Manufacturing (Pty) Ltd designs and builds heavy equipment at its works in Camperdown, KwaZulu-Natal — road graders, trailers, tankers, trenchers and agricultural implements — with distribution across Africa and internationally. The company holds Level 4 B-BBEE accreditation.
Every trailer is built from welded steel sections, chemically cleaned and finished in a two-coat paint system, and can be ordered with the tyres, hitch and colour that suit your operation.
Request a quote
Tell us what you carry, how far you carry it and the tractor you pull with, and we will recommend the trailer that fits. Dealer and distributor enquiries welcome.
Telephone
Mobile
Works
Camperdown, KwaZulu-Natal
